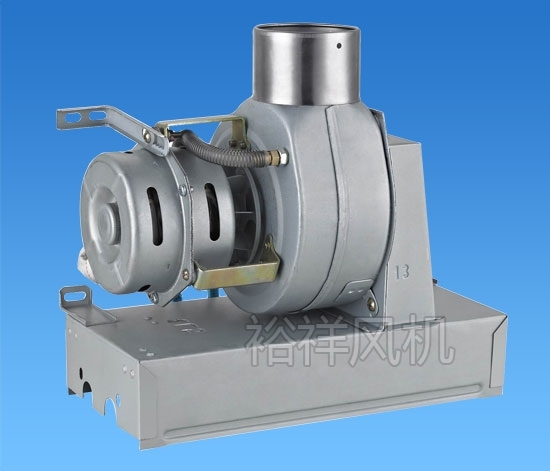

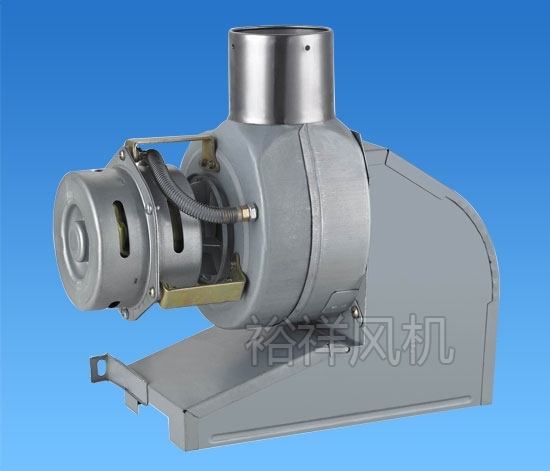

Condensing fan

The main features and selling points of the fan
(1) fan the overall structure of the hydrodynamic design ability of wind pressure, negative pressure output stability;
(2) the whole flue gas is lower than the same industry products 20% (PPM) thermal efficiency can improve by 2-3 percentage points;
(3) motor load the temperature rise ≤ 58K designed to leave more space for the whole electronic control;
(4)The motor can be run at low voltage (187V) to ensure that the wind turbine output voltage fluctuation factors negative pressure can be maintained for the machine to work properly;
(5)The structure and appearance of a fan won a number of technology patents, structural design novel more machine industrial design more closely match;
(6)WTG main components (volute / hoods) production process stretching process, the combination of high sealing and overall appearance of the fine;
(7)Solder joint welding firm and strong tensile strength of up to 6000-7000N;
(8)Low fan noise (≤ 60dB) using reliable long life;
(9)Patent No.: ZL201130186268.6

Print】【Close
Business Consulting: 0760-23625922
Business Consulting: 0760-23625923
QQ:1545948577
QQ:2376381260

E-mail:cmb889@21cn.com
Company
QQ/Email
Tel
Code

The  performance parameters

Name

Condensing fan

Water heater applicable models

8L-12L

Operating voltage adjustable range

220V

Input power



25-35W

Speed



(High-end) 2800 ± 100r/min
     (Low-grade) 2000 ± 100r/min

Fully open the air pressure

adjustable range (negative pressure)

0-320Pa

Wind velocity

13.0m/s

Temperature rise

≤58K

Running noise

≤60dB

Motor insulation class

B
